Objective: To assess the feasibility of a bright posterior limb of the internal capsule (pLIC) signal (PICS) in DiMANI images, as a reliable landmark for directly targeting the VIM in DBS procedures.

Background: Difficulties in direct visualization of thalamic subnuclei have led to inconsistent surgical outcomes^{1, 2} and repeat surgeries for patients undergoing DBS surgery for medication refractory tremors. Using the DiMANI contrast³, we present a new MRI landmark in the pLIC, referred to as PICS, that indicates the location of the Vim nucleus of the thalamus, enabling direct targeting approaches for surgical interventions.

Method: One healthy control and fifteen essential tremor (ET) patients were scanned at 7Tesla. To characterize the PICS fibers, two pLIC tractography schemes were conducted with cortical ROIs as seeds and the pLIC as a waypoint: i) gross motor cortical ROIs were extracted from the HMAT template⁴, ii) M1 homunculus was extracted from the Brainnetome data⁵. Finally, intra- and post-operative clinical data were merged for one ET DBS patient to show correspondence between the parcellation results and clinical observations.

Results: PICS was consistently identified across multiple MRI sequences, but more easily idendified in DiMANI sequences in all patients (Fig.1). Tractography analyses identified PICS to correlate with the distribution of motor fibers from the internal capsule (Fig.2A-C). For the M1 homunculus, two somatotopic clusters were observed: one including mostly trunk, lower and upper limbs; and another, more anteriorly, with head/face clustering with tongue/larynx (Fig.2D-F). Intra-operative stimulation at two different depths resulted in pLIC-specific side effect in the tongue/face. At those depths, measurements showed closer proximity of the DBS electrode to M1 clusters of head/face and tongue/larynx, validating the imaging findings (Fig.3).

Conclusion: PICS appears to be a reliable radiological marker comprising cortico-spinal tracts, in isolation from corticobulbar tracts fibers. It is consistently located lateral to the VIM, making it a potential landmark for targeting thalamic procedures. The parcellations of the pLIC using M1 homunculus could potentially inform lead or ablation location based on side effect profiles (e.g. head/face/tongue vs. trunk/limbs). Further studies are needed to correlate PICS with clinical outcomes and electrode locations in DBS procedures.

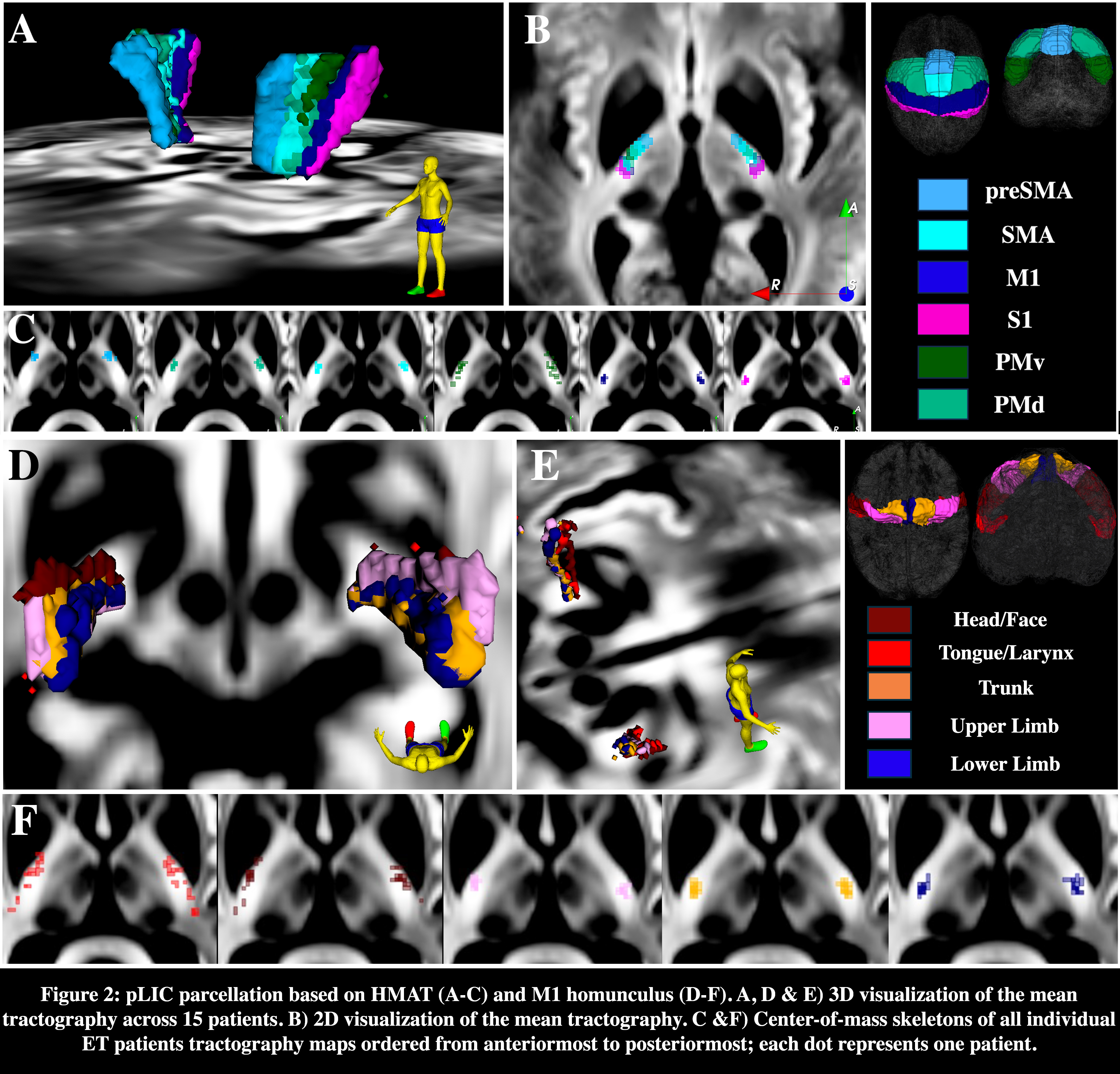

Fig.2

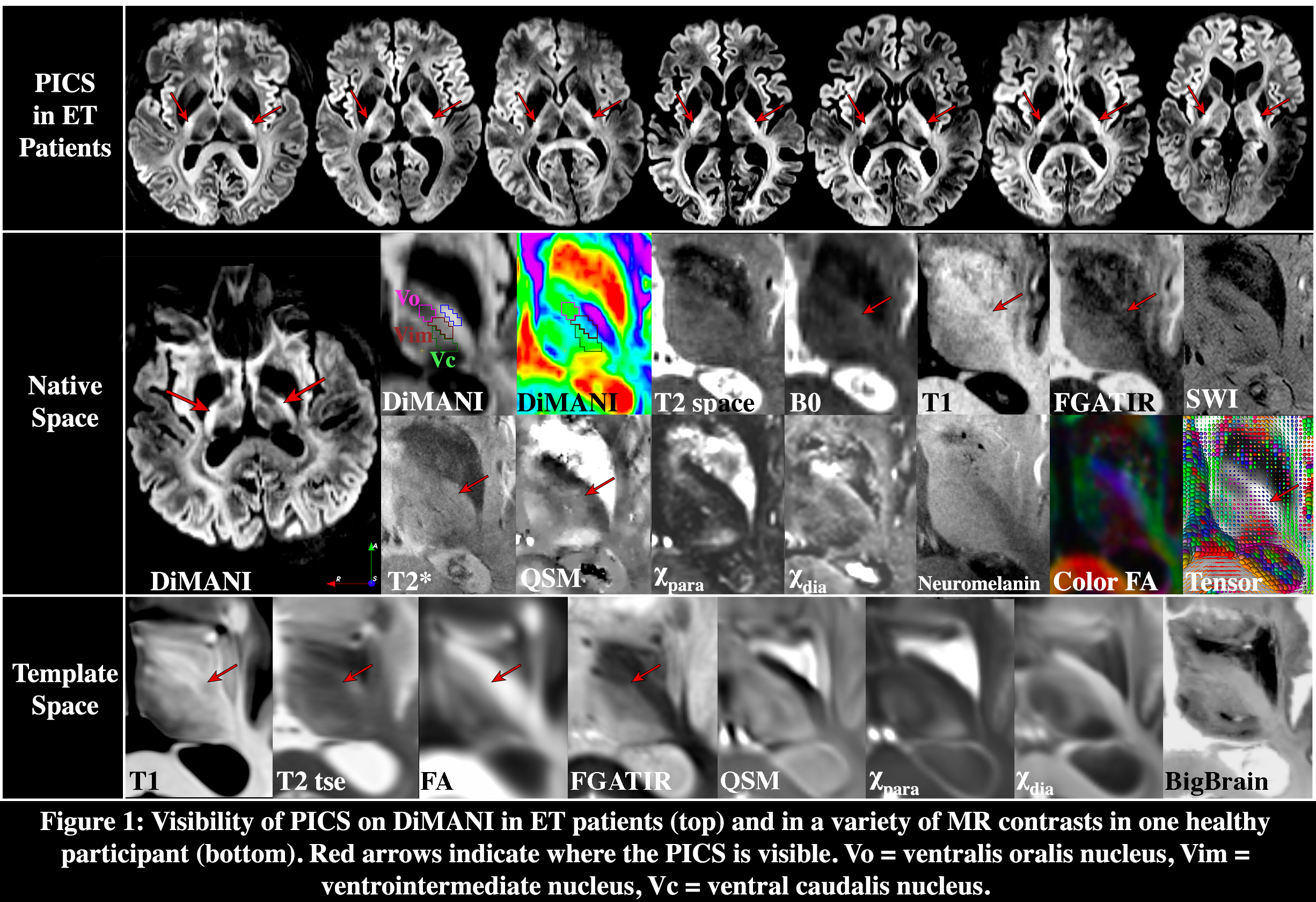

Fig.1

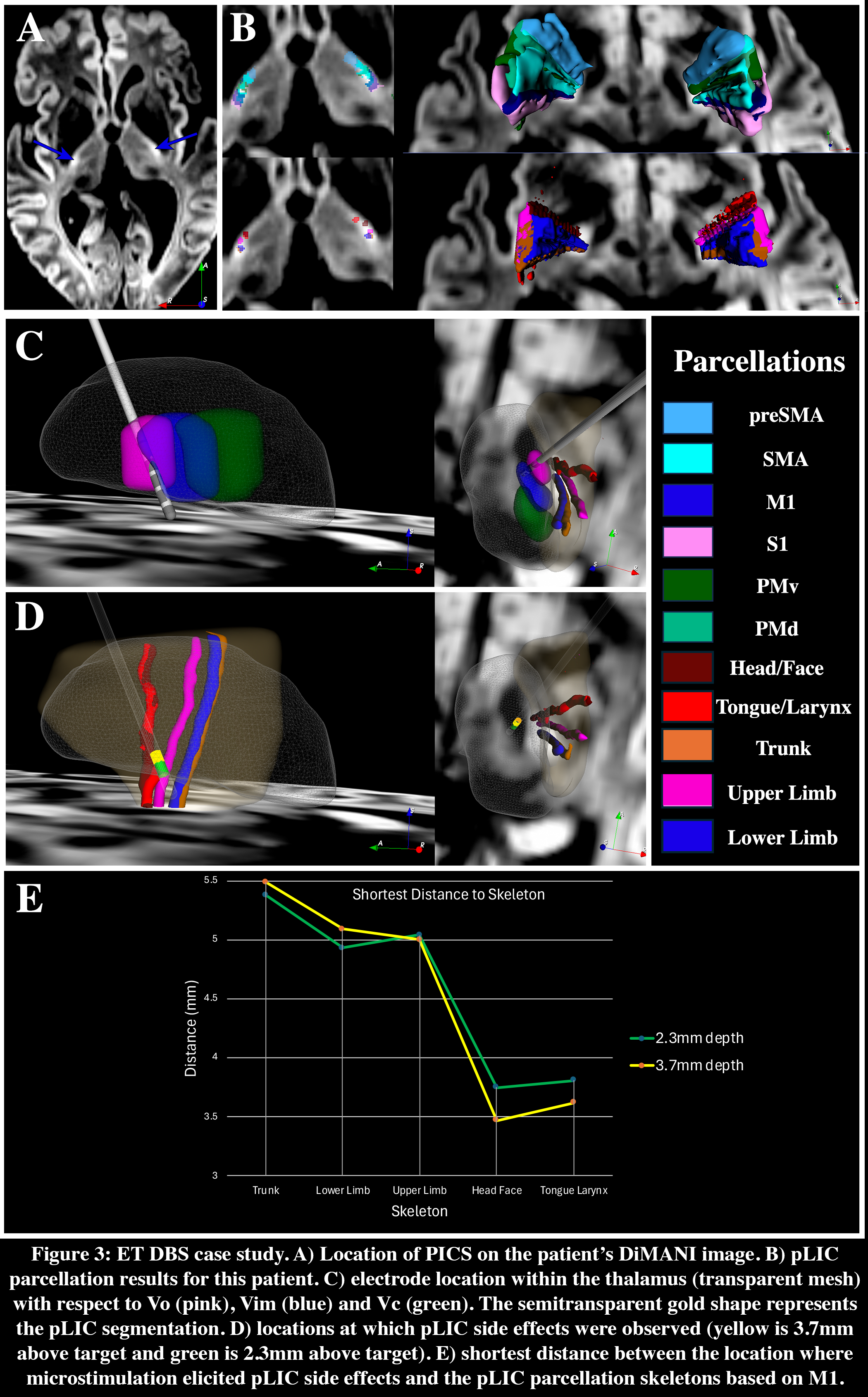

Fig.3
